The Explosion-Proof Electric Thermal Oil Boiler is a high-performance temperature control system engineered specifically for the rigorous demands of the petrochemical industry. Capable of achieving process temperatures up to 350°C, this compact and robust system utilizes synthetic heat transfer fluids to provide precise, safe, and efficient heating for hazardous environments where explosion-proofing is critical.

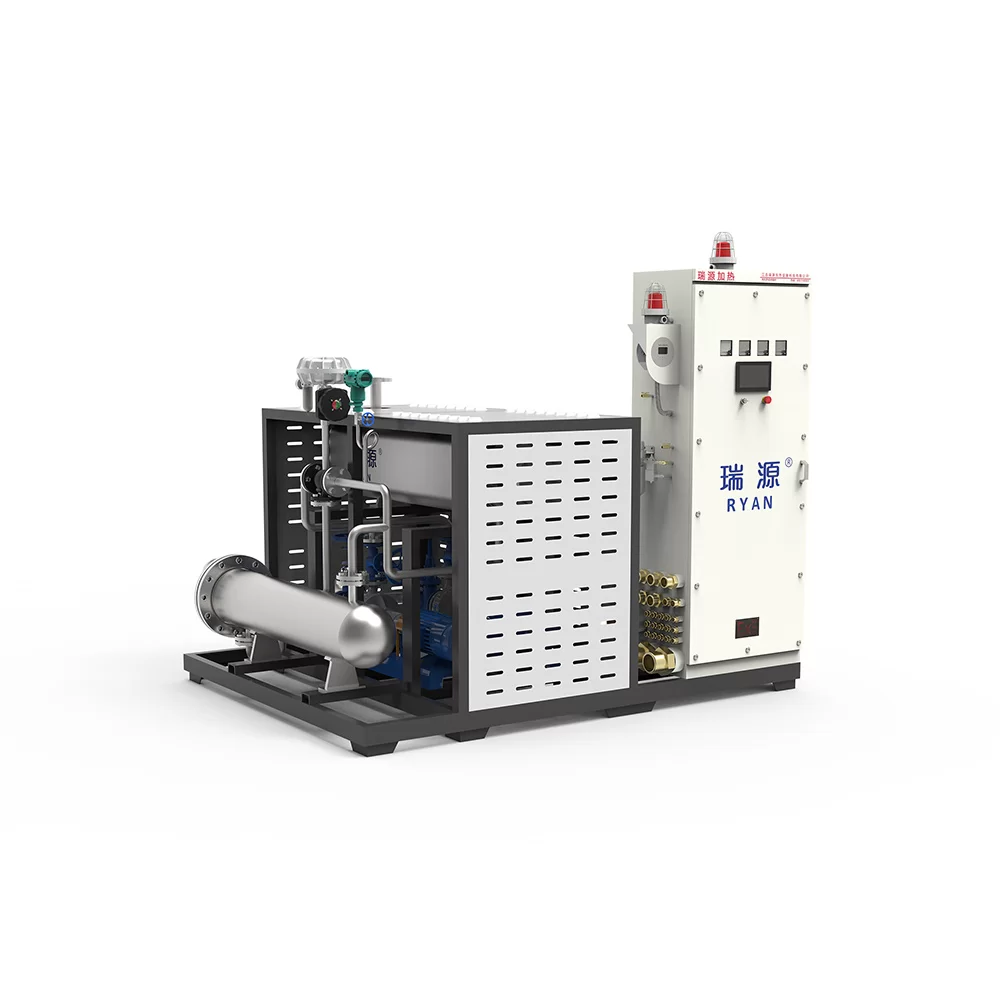

Designed as a fully integrated solution, the system features a welded steel frame housing an electric heater, centrifugal pump, expansion tank, and an advanced control panel. By maintaining a fixed flow rate, the system ensures an even distribution of heat and maximum thermal efficiency, making it an ideal choice for reactors, distillation stills, and high-temperature industrial ovens.
| Max Temperature | Up to 350°C | Input Power Range | 10 ~ 4000KW |
|---|---|---|---|
| Control Accuracy | ±1°C | Heating Medium | Synthetic Heat Transfer Fluid |
| Insulation Material | Alumina Silicate Fibre | Control System | Digital PID / PLC with HMI |
| Electrical Components | Siemens, Omron, Schneider, ABB | Power Controllers | SSR or SCR |
| Construction | All Welded Steel Frame | Communication | RS485 Protocols (Optional) |
Specifically engineered for petrochemical environments to ensure maximum safety and compliance with industrial hazard standards.
Fixed flow rate circulation ensures heat is evenly distributed, minimizing energy waste and optimizing operational costs.
Equipped with Digital PID controllers and platinum resistance sensors for a temperature accuracy of ±1°C.
Optional PLC with HMI touch panels provide real-time visualization and intuitive system management.
All-welded construction with high-grade alumina silicate fibre insulation to prevent heat loss and ensure durability.
Tailored specifications from 10KW to 4000KW to meet the exact heating requirements of your specific application.
Seamlessly integrates with reactors, evaporators, heat presses, and asphalt tanks.
Digital PID controllers maintain strict temperature ranges for sensitive chemical processes.
Audible and visible alarm indicators provide immediate notification of system deviations.
Optional touch panel interfaces for streamlined operational control and data monitoring.
Includes expansion tanks and strainers to maintain fluid purity and system pressure.
RS485 communication protocols enable integration into factory-wide SCADA systems.
| Feature | Standard Electric Heater | Explosion-Proof TOH |
|---|---|---|
| Safety Level | Basic / Non-Certified | Industrial Explosion-Proof |
| Temp Accuracy | ±5°C to ±10°C | High Precision ±1°C |
| Heat Distribution | Localized / Uneven | Uniform System-Wide Flow |
| Operational Life | Moderate | Extended (Industrial Grade) |
| Energy Efficiency | Standard Loss | Optimized via Alumina Insulation |
